Formwork

Today the crew was putting up formwork. Now you can see the extent of the rear addition (well, this and the new second floor in the back).

Formwork underway

Basically the whole rear addition is the elevator shaft and a new rear staircase (since the front one is lovely and original, but not terribly negotiable if you have any kind of disability).

The wide haunch

One thing you can see now is the widened haunch on one side of the addition. When we went through planning they wanted the addition both set apart from the house and blending into the style of the house. Figure that one out if you can. Anyway, they did not like that I had blended the addition in to the original house at the back as the city guidelines on renovation require, so they asked me to delineate them with, and I quote, "just a line of trim there."

Anyway, we compromised on this stupid jog. It's fine. It gave me room to hide a 2x6 shear wall.

Form ties in place

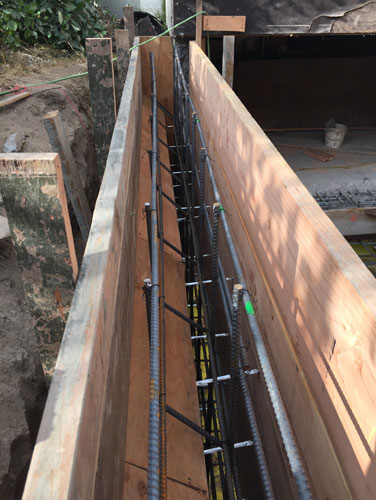

OK, planning redesigning my house aside, it's really nice to see the foundation comping together. Just to tell you what you are looking at here, this is a formed-up wall. With a concrete wall you build it twice: once in reverse, then again in concrete. The contractors put up one wood wall, then built the rebar that will reinforce the concrete, then put up the inside wood formwork. The two sides are tied together with form ties. Those keep the formwork from bulging out of shape (which at the least would require more concrete which you may not have).

Form ties from the outside

The form ties run through both sides of the form and are snapped off after the concrete wall is done. After that, they can apply the waterproofing.

Elevator pit

Also, a couple people asked about the elevator pit. Elevators need to have a depression in the floor to set down into, so that the floor of the elevator (which is 6-8 inches thick) can be level with the floor outside. So we have this area of the foundation that is depressed a little to allow that to happen.

Tomorrow morning I'm meeting the elevator company at the site to spec out the actual elevator cab itself, and the nerd flag is going to be flying hard. I'm trying to decide the extent to which I should reveal the design we want, exposing myself to internet ridicule. Maybe it will be a big reveal at the end.

posted by ayse on 05/23/16

3 Comments

How about one of those snazzy old time elevators with grill work, if that's what it's called.

I'm very much in favor of keeping as un-modern a feel as possible in an old house, but this a necessary elevator in a new addition -- if ever there were an opportunity to do whatever the hell you want, surely this is it. If the Internet ridicules you for wanting it to look like the beam-up station on the Enterprise or a chicken coop, the Internet is stupid (but we knew that already). Hope it turns out exactly as you desire.

I can't wait for the reveal! You haven't disappointed me yet.

Note: We're getting pummeled with spam comments, so I've turned off the ability to use any HTML or include any links for the time being. Email with any issues.
